Broadcast status & studio signalling

LMPSH-IP PoE RGB studio signal lamp

Make your studio status clear.

An illuminated studio sign with configurable RGB cues, browser setup, and power and control over one Ethernet connection.

Discuss your project View downloads

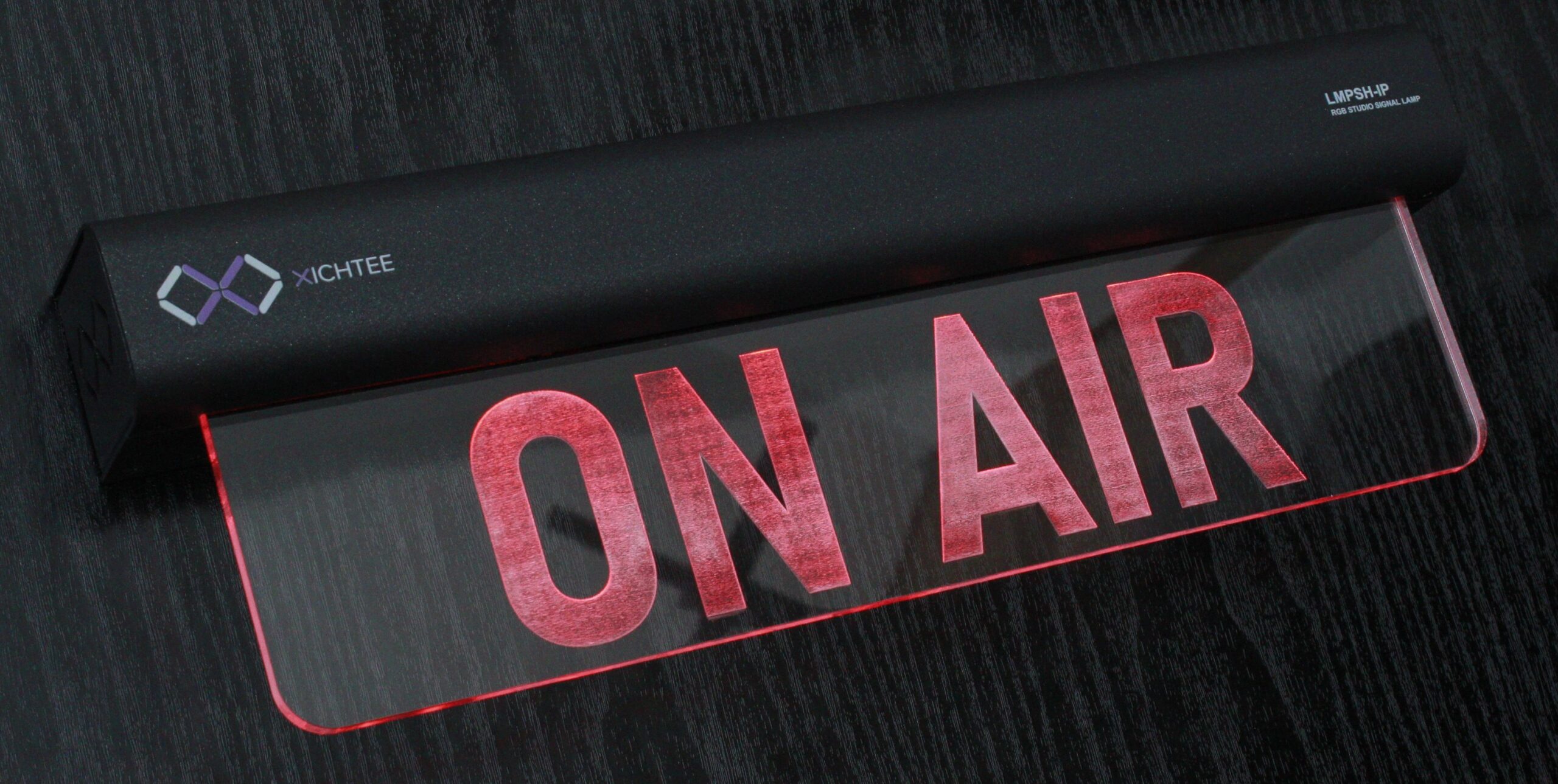

LMPSH-IP wall-mount studio signal lamp with its engraved ON AIR panel illuminated red
Power & data
PoEIEEE 802.3at Class 4
Sign sections
1 or 2Single or independently controlled dual format
Priority Rules
5Per active sign section

Your message. Your studio.

One clear message. Or two distinct cues.

For radio and television studios, voice-over booths, production control rooms and OB facilities. Specify the engraved sign text for your workflow.

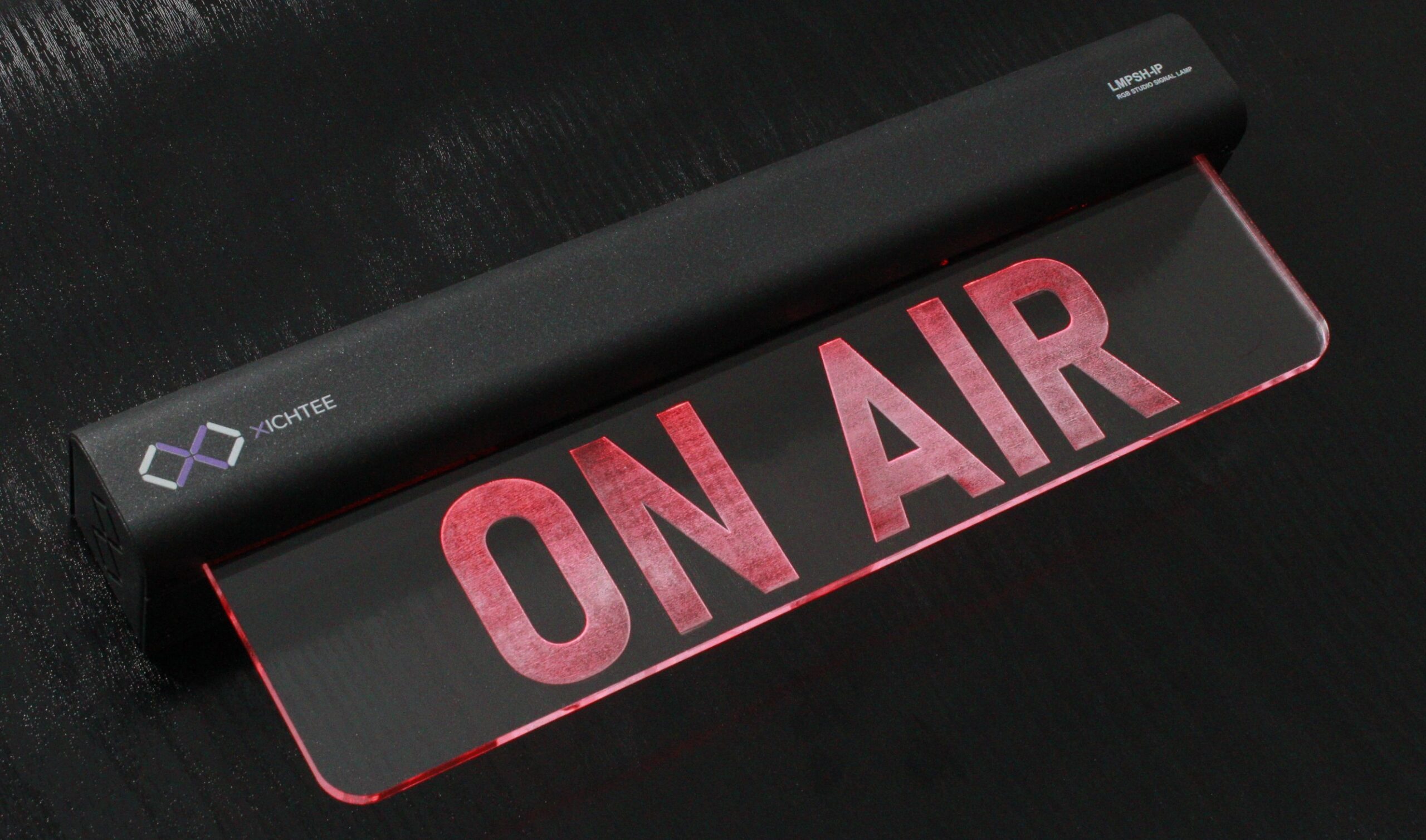

Single LMPSH-IP sign format with one full-width ON AIR message
Single sign format · Product photograph

One full-width sign

Make a studio entrance or recording space easy to read. One illuminated section displays your engraved message, with configured colours and effects indicating the current state.

Dual LMPSH-IP sign format showing MIC ON in green and REC in red on separate sections
Dual sign format · Product illustration

Two independent sections

Show two cues on the same lamp, such as microphone and recording status. Each section has its own Rules and can display a different configured colour or effect.

Connect to your workflow

Control that fits your setup

Five priority Rules per active section, ten Presets and ten shared Custom Effects turn broadcast and control events into repeatable visual cues.

Included

  • TSL UMD 3.1
  • Pro-Bel SW-P-08
  • OSC 1.0
  • REST API

Optional licences

  • Ember+
  • MQTT
  • Cluster Mode

Optional Cluster Mode licence

One Active master. A coordinated system.

Link a Primary, an optional standby Backup and 1–32 read-only Followers. Send shared control and configuration changes to the current Active master.

The Active master distributes selected application configuration and live Rule state. Each device keeps its own network settings, users, licences and Cluster topology.

When the Primary is unavailable

  1. A ready Backup becomes Active.
  2. Followers use the Backup.
  3. External clients reconnect or retarget the Active master.

Read the Cluster setup guide

External control & configuration
Active masterPrimary
Selected application configuration
& live Rule state
BackupOptional standbyMirrors Primary state
Followers1–32 devicesRead-only
Backup FollowersFailover only, after a ready Backup becomes Active
Normal operation: Primary is Active. The optional Backup remains on standby until failover.

Product details

An integrated sign. A single network connection.

One compatible PoE connection supplies power and IP control data. Find the lamp with the XICHTEE Discovery Tool, then configure it in a standard browser.

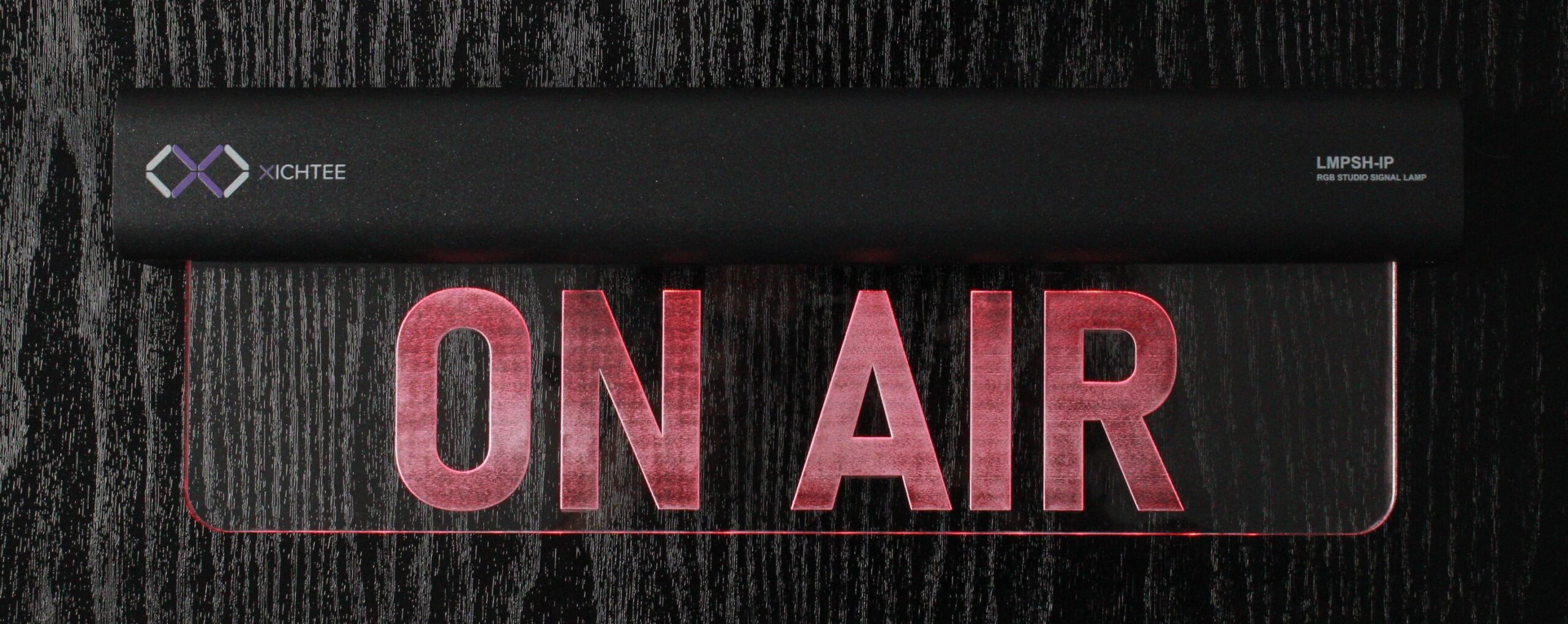

Front of the LMPSH-IP housing and engraved acrylic ON AIR panel
Integrated RGB sign · Wall-mount housing
Official LMPSH-IP rear installation drawing identifying the central PoE RJ45 connection
Rear installation view · PoE/LAN connection · Not to scale
Technical specifications
LMPSH-IP technical specifications
Power PoE · IEEE 802.3at Class 4
Display Engraved acrylic sign · One or two independently controlled RGB sections
Control Five priority Rules per active section · Ten Presets · Ten shared Custom Effects
Network & setup RJ45 Ethernet · DHCP or static IPv4 · Browser configuration
Overall dimensions 350 × 115 × 50 mm, including the illuminated panel
Mounting & dimensions

Overall size: 350 × 115 × 50 mm. Mounting centres: 310 mm. Dimensions are in millimetres; the drawing is not to scale. Confirm dimensions before installation.

Rear mounting dimensions Official LMPSH-IP rear dimension drawing with original measurement labels and 310 mm mounting centresEnlarge drawing

Plan your integration

Documentation & downloads

Documentation for firmware v1.3.0 Release, build 310. All PDFs and software links open in a new tab.

Product documents

LMPSH-IP datasheetRevision 2.13 · PDF
English 日本語 Español
User manualRevision 1.20 · PDF
English 日本語 Español

Protocol & Cluster guides

English PDFs. Ember+, MQTT and Cluster Mode require their respective licences.

TSL UMD 3.1Revision 2.1 · PDFPro-Bel SW-P-08Revision 3.2 · PDFOSC 1.0Revision 2.2 · PDFREST APIRevision 8.13 · PDFEmber+ / S101Revision 1.4 · PDFMQTTRevision 1.6 · PDFCluster Mode setupUser manual · Chapter 11 · PDFCluster Mode diagramDatasheet · Page 6 · PDF

Ember+ parameter reference and guide

Firmware & discovery tool

The firmware package and documentation are for v1.3.0 Release, build 310.

Device firmwareVersion 1.3.0 Release · build 310 · ZIPWindows discovery toolDevice Configuration App · ZIP
